An aluminium composite panel can look flat and sturdy while hiding very different internal constructions. Its core material, skin thickness, and bonding determine how the panel resists bending, handling, and service loads. Understanding these relationships helps specifiers compare products accurately and match panel rigidity to the application.
Rigidity factors in aluminium composite panels
An aluminium composite panel usually sandwiches a central core between two aluminium layers. The skins contribute to bending resistance, while the core holds them apart and transfers shear between them.
This geometry gives the panel stiffness without the weight of a solid aluminium sheet. However, the result depends on the complete assembly, not one specification viewed alone.
Core material and shear support
A polyethylene core generally keeps panels lightweight and supports many signage or interior uses. Its properties vary by formulation, so buyers should check product documentation instead of assuming every polymer core performs alike.
A mineral core can improve fire performance when manufacturers design and test it for that purpose. It may also change panel weight, fabrication behavior, and mechanical response. The label alone does not establish a fire classification.
The core must resist shear and maintain the distance between the faces. If it deforms or loses integrity, the skins cannot work together as effectively. Therefore, core material influences rigidity, but density, panel geometry, and construction also matter.
Skin thickness and bending resistance
Thicker aluminium skins generally resist local dents and contribute more to bending strength. Common products may use skins around 0.2 to 0.5 millimetres thick, although specifications vary by manufacturer and application.
Two panels with the same overall thickness can behave differently when their skin thickness differs. A nominal four-millimetre panel does not reveal whether it uses relatively thin or substantial aluminium faces.
Skin alloy, temper, panel dimensions, and support spacing also affect panel stiffness. For façade design, engineers assess these factors alongside wind pressure, fixing details, and building height.
Comparing core and skin specifications
Product comparisons work best when they connect construction details to the intended use. A panel’s total thickness offers a starting point, but it cannot independently predict structural performance.
| Specification | What it influences | What to verify |
|---|---|---|
| Core material | Shear support, weight, fire behavior | Core type and test documentation |
| Skin thickness | Bending response and dent resistance | Thickness of each aluminium face |
| Bonding strength | Cooperation between core and skins | Manufacturer’s technical data |
| Panel dimensions | Deflection and handling behavior | Span, supports, and fixing method |
Bonding strength matters because poor adhesion can allow separation between the skins and core. That separation weakens composite action, even when the individual materials appear suitable.
Ask suppliers for current technical datasheets and relevant test reports. For exterior cladding, confirm the exact fire classification required by local codes and project specifications.
Selection for the intended application

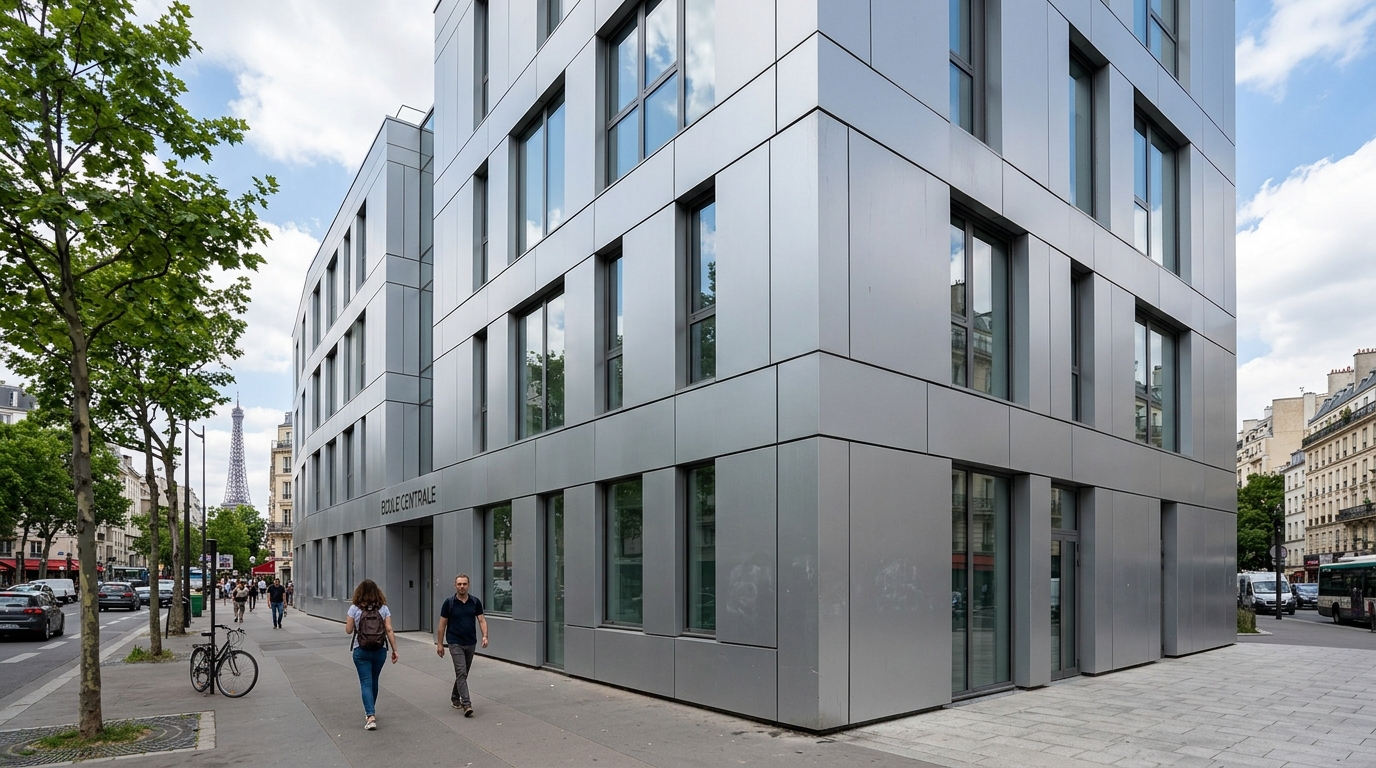

Signage, interior decoration, and exterior façades impose different demands. A lightweight panel may suit a sign, while a tall façade requires project-specific checks for wind loads, spans, connections, and fire rules.
Before choosing a panel, compare these details as a coordinated set:
- Confirm the core composition and its stated fire classification.
- Check each aluminium skin’s thickness, not only total panel thickness.
- Review panel size, support spacing, fixing details, and expected loads.
- Examine coating and environmental suitability for the installation location.
These checks prevent a common specification error: treating a single thickness figure as proof of performance. Installation also matters; poorly aligned supports or unsuitable fixings can undermine a well-selected panel.
Rigidity as a complete system property
Panel rigidity describes how a panel resists deformation, but the installed assembly determines its practical behavior. Core, skins, bonding, dimensions, supports, and connections all contribute.
For demanding façades, a qualified façade engineer should review product data and system design. The most reliable choice balances stiffness, weight, fire requirements, fabrication needs, and site conditions rather than relying on one headline specification.
When comparing aluminium composite panels, examine the core material, skin thickness, and bonding strength together. Consult the manufacturer and a qualified façade professional to confirm suitability for the project.
